BB30 Series For 24mm Cranks

Original price was: $99.00.Current price is: $91.99.

Calculate Shipping

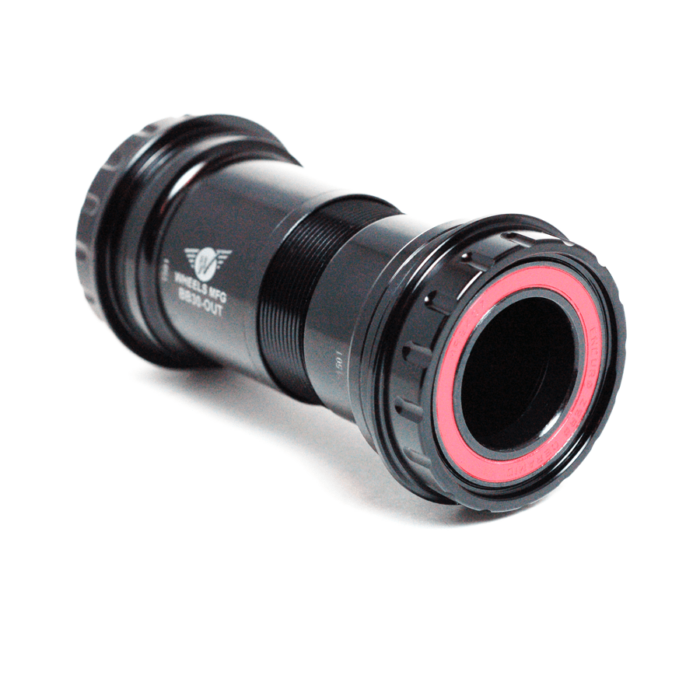

Wheels Mfg BB30 Outboard bottom brackets feature two machined aluminum cups which thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in BB30 (42mm ID BB shell) frames without the need for any adapters.



SKU: BB30-OUT-SHIM Category:

Description

Wheels Mfg BB30 Outboard bottom brackets feature two machined aluminum cups which thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in BB30 (42mm ID BB shell) frames without the need for any adapters.

Note:

FSA Mega Exo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! You will need to purchase a FSA 24.07×37 ceramic hybrid bearings separately.

Compatible with 24.00mm spindle diameter cranksets.*

How to Select A Bottom Bracket
Bearing Wisdom

Additional information

Weight 1.0 oz
BB STANDARD

CRANK SPINDLE DIAMETER

Color

Black
Select A Bearing Type

XD-15, Zero Ceramic, Ceramic Hybrid, Angular Contact, ABEC-5, ABEC-3
  • Color: Black
  • Bottom Bracket/Frame Interface: BB30, Specialized Alloy OSBB
  • Bottom Bracket Shell Width: 68mm - 73mm
  • Bottom Bracket Shell I.D.: 42mm
  • Over Bearing Width: 90.5mm in 68mm wide shell*
  • Crank Spindle Diameter: 24.00mm
  • Tool Pattern: 44mm, 16-notch
  • Weight: 130g

* Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (42mm BB shell inner diameter):

  • BB30
  • Specialized Alloy OSBB.

Compatible with 24.00mm spindle diameter cranksets.*

Note:

FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! You will need to swap the bearings with our FSA 24.07x37 ceramic hybrid bearings.

Download: BB30-OUT for 24mm Spindle (Shimano) Installation / Service

Picture Name Price   SKU Categories Weight
Bottom Bracket Socket Bottom Bracket Socket $40.46
✓
BBTOOL-48-44 6.50 oz

Picture Name Price   SKU Categories Weight
24mm x 37 Enduro ABEC-3 Bearing Kit 24mm x 37 Enduro ABEC-3 Bearing Kit $26.73
✓
BKIT-SHIM-AB 3.0 oz
24mm x 37 Enduro Ceramic Hybrid Bearing Kit 24mm x 37 Enduro Ceramic Hybrid Bearing Kit $91.99
✓
BKIT-SHIM-CH 3.0 oz
