Fat Bike BB for 24mm - Bicycle Parts Direct

BB86 Fat Bike Series For 24mm Cranks

Calculate Shipping

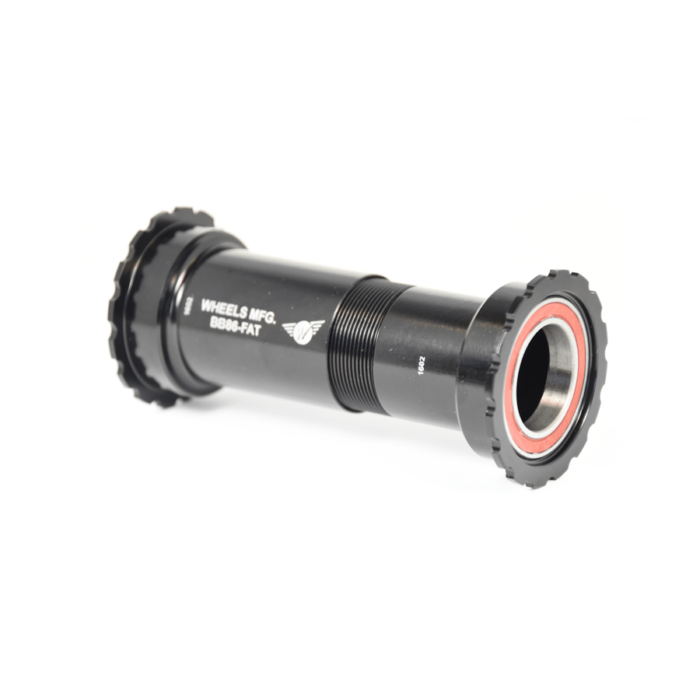

Threaded BB86-FAT-BB ABEC-3 bottom bracket for Fat Bike PF41 (BB121) and 24mm spindle diameter cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance. No more creaking. Smooth operation. Fast bearing replacement.

This product is currently out of stock and unavailable.

SKU: B86-FAT-BB Category:

Description

Threaded BB86-FAT-BB bottom bracket for Fat Bike PF41 , BB121 (41mm ID) and 24mm spindle diameter cranks. Machined cups thread together for stability, increased bearing life, and simple installation and maintenance. No more creaking. Smooth operation. Fast bearing replacement.

How to Select A Bottom Bracket
Bottom Bracket Bearings

Additional information

Weight 1.0 oz
BB STANDARD

,

CRANK SPINDLE DIAMETER

Select A Bearing Type

Angular Contact, ABEC-5, ABEC-3
  • Color: Black
  • Bottom Bracket/Frame Interface: PF41 - BB121
  • Bottom Bracket Shell Width (mm): 105mm - 130mm
  • Bottom Bracket Shell I.D.: 41mm
  • Crank Spindle Type: Shimano Hollowtech II, FSA MegaExo, RaceFace EXI
  • Crank Spindle Diameter: 24mm
  • Tool Interface: 48.5mm, 16-notch
  • Weight: 120g

This is a fat bike bottom bracket! Your frame must have a 41mm inner diameter, with a width of 121mm. If used on a shell with a 132mm width, the cups will overlap 3 threads max.

Compatible with the following Bottom Bracket Standards:

  • PF41 - BB121

Compatible Crank Spindle Type: FSA MegaExo, RaceFace EXI (24mm spindle diameter)

DOWNLOAD: PF41 FAT BIKE INSTALLATION / WARRANTY Download PDF File
