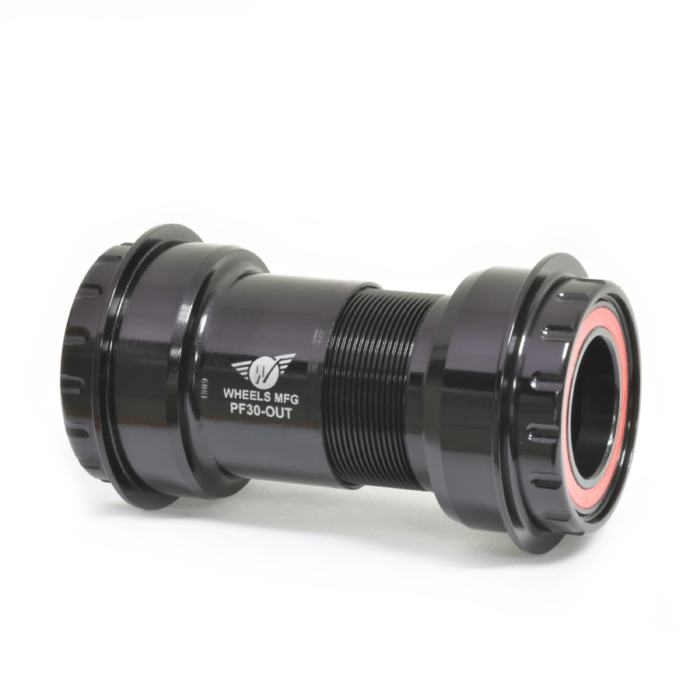

PF30 Outboard Series for 24mm Cranks

Original price was: $99.00.Current price is: $81.99.

Calculate Shipping

Thread together bottom bracket for frames using the PF30 bottom bracket standard. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacemen

SKU: PF30-OUT-SHIMANO Category:

Description

Thread together the bottom bracket for frames using the PF30 bottom bracket standard. Two machined aluminum cups thread together keeping the bottom bracket stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

How to Select A Bottom Bracket
Bottom Bracket Bearings

Specifically designed for installing 24.00mm spindle diameter cranks (Shimano, Etc.) in PF30 (46mm ID BB shell) frames without the need for any adapters.

  • BB Cups with bearings
  • 2 – Silicone dust seals
  • 2 – 0.5mm crank spindle spacers
  • 2 – 1.0mm crank spindle spacers

Note:

FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work!

Additional information

Weight 1.0 oz
BB STANDARD

CRANK SPINDLE DIAMETER

Select A Bearing Type

XD-15, Zero Ceramic, Ceramic Hybrid, Angular Contact, ABEC-5, ABEC-3
  • Color: Black
  • Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
  • Bottom Bracket Shell Width: 61mm* - 73mm
  • Bottom Bracket Shell I.D.: 46mm
  • Over Bearing Width: 90.5mm in 68mm wide shell
  • Crank Spindle Diameter: 24.00mm
  • Tool Pattern: 44mm, 16-notch
  • Weight: 161g

Notes:

  • Specialized Carbon OSBB frames with a 61mm shell width need additional 3.5mm cup spacers.
  • BB cups produced after July 2018 do not use o-rings.
  • Over Bearing Width Dimensions include supplied silicone dust shields.

Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):

  • PF30
  • Specialized Carbon OSBB. May need additional 3.5mm cup spacers if BB shell width is 61mm

Compatible with 24.00mm spindle diameter cranksets.*

Note:

FSA MegaExo spindles can be between 24.00mm and 24.07mm in diameter. If your FSA spindle is 24.07mm, this BB will not work! You will need to swap the bearings with our FSA 24.07x37 ceramic hybrid bearings.

Download: PF30-OUT for 24mm Spindle Installation / Service Download PDF File

Picture Name Price   SKU Categories Weight
Bottom Bracket Socket Bottom Bracket Socket $40.46
✓
BBTOOL-48-44 6.50 oz

Picture Name Price   SKU Categories Weight
24mm x 37 Enduro ABEC-3 Bearing Kit 24mm x 37 Enduro ABEC-3 Bearing Kit $26.73
✓
BKIT-SHIM-AB 3.0 oz
24mm x 37 Enduro Ceramic Hybrid Bearing Kit 24mm x 37 Enduro Ceramic Hybrid Bearing Kit $91.99
✓
BKIT-SHIM-CH 3.0 oz
