PF30 Outboard Series for 30mm Cranks

$90.00$110.00

PF30 with outboard bearing BB for use with 30mm spindle cranksets when used in PF30 frames. A great choice for use with RaceFace Cinch cranks. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Clear
SKU: PF30-OUT-30M Category:

Description

PF30 with outboard bearing BB for use with 30mm spindle cranksets when used in PF30 frames. A great choice for use with RaceFace Cinch cranks. The two machined aluminum cups thread together ensuring the bottom bracket remains stable in the frame, increasing bearing life, and simplifying maintenance. This means no more creaking, smoother operation, longer bearing life, and really quick bearing replacement.

Note:

Spindle length must be 103mm or longer when used in a 68mm wide shell, 108mm or longer when used in a 73mm wide shell.



Additional information

Weight 1.0 oz
BB STANDARD

CRANK SPINDLE DIAMETER

Select A Bearing Type

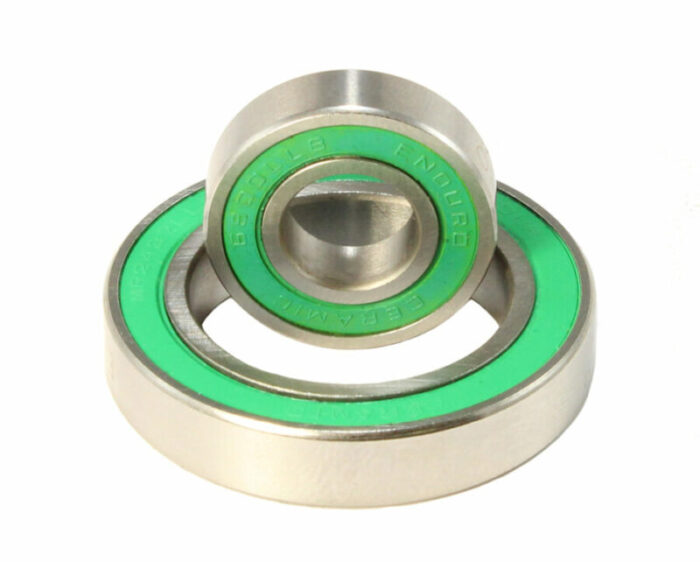

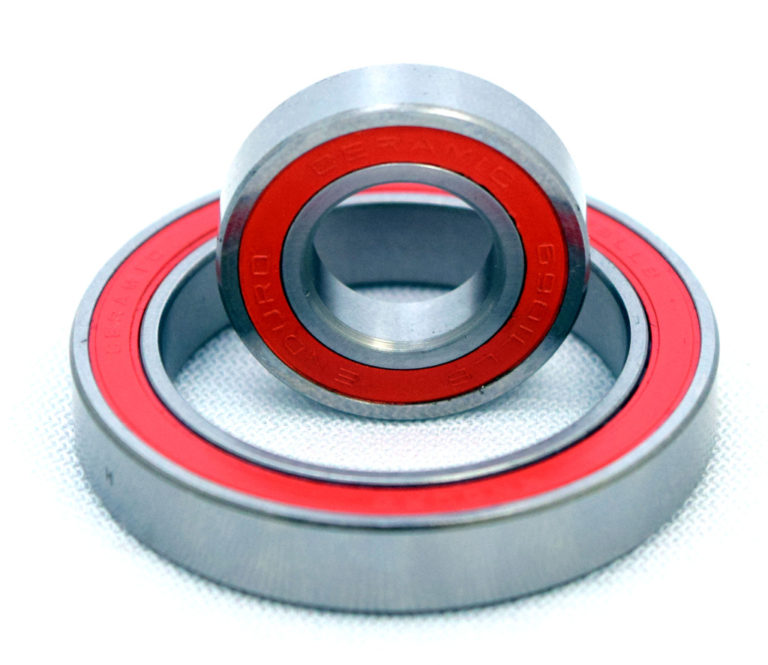

XD-15, Zero Ceramic, Ceramic Hybrid, Angular Contact, ABEC-5, ABEC-3

  • Color: Black
  • Bottom Bracket/Frame Interface: PF30, Specialized Carbon OSBB*
  • Bottom Bracket Shell Width: 61mm* to 83mm
  • Bottom Bracket Shell I.D.: 46mm
  • Overbearing Width: 89mm in 68mm wide shell
  • Crank Spindle Diameter: 30mm
  • Tool Pattern: 48.5mm x 16 notch
  • Weight: 151g

Compatible with the following Bottom Bracket Standards (46mm BB shell inner diameter):

  • PF30
  • Specialized Carbon OSBB. May need additional 3.5mm cup spacers if BB shell width is 61mm

Compatible with 30mm spindle diameter cranksets. Spindle length must be 103mm or longer when used in a 68mm wide shell, 109mm or longer when used in a 73mm wide shell.


Download: PF30-OUT for 30mm Spindle Installation / Service Download PDF File


Picture Name Price   SKU Categories Weight
Bottom Bracket Socket Bottom Bracket Socket $49.95
spinner
BBTOOL-48-44 6.50 oz
Press 7 - Universal Bottom Bracket Press 7 - Universal Bottom Bracket $70.00
spinner
PRESS-7 55 oz
Wheels Mfg Double End BB Wrench, 48.5mm / 44mm Wheels Mfg Double End BB Wrench, 48.5mm / 44mm $29.95
spinner
WRENCH-BB48-44 3.36 oz


Picture Name Price   SKU Categories Weight
30mm x 42mm Enduro ABEC-3 Bearing Kit 30mm x 42mm Enduro ABEC-3 Bearing Kit $33.00
spinner
BKIT-30MM-AB 3.0 oz
30mm x 42mm Enduro Angular Contact Bearing Kit 30mm x 42mm Enduro Angular Contact Bearing Kit $65.98
spinner
BKIT-30MM-AC 3.0 oz
30mm x 42mm Enduro Ceramic Hybrid Bearing Kit 30mm x 42mm Enduro Ceramic Hybrid Bearing Kit $102.30
spinner
BKIT-30MM-CH 3.0 oz
