29 x 42 DUB Open Bore Adapter

$8.00

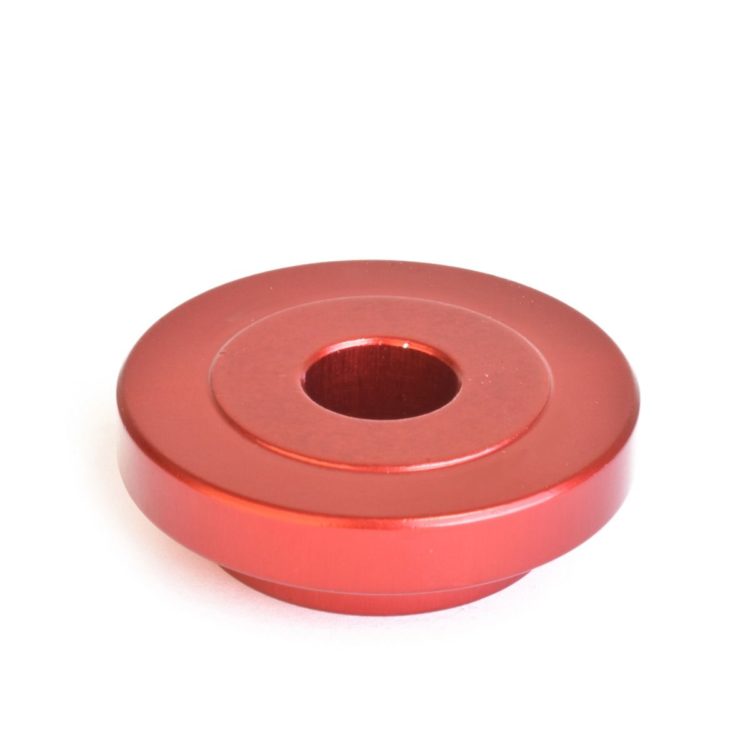

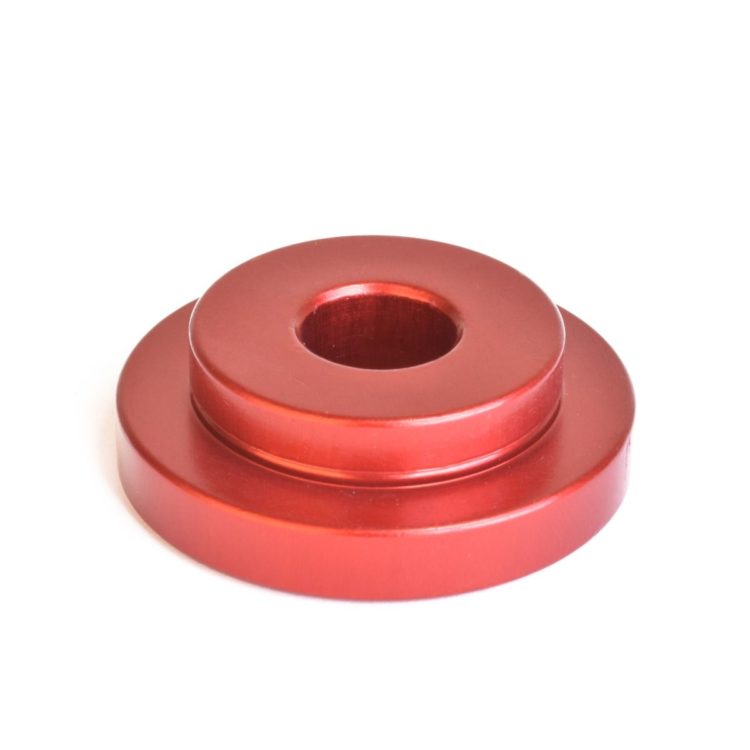

29mm open bore adapter is used to press 29mm x 42mm sealed bearings. The adapter is machined with one step at 29mm OD, which fits in to the center of the sealed bearing. For use with Wheels Mfg Bottom Bracket Press (PRESS-7, PRESS-7-PRO or PRESS-9-PRO)

In stock

SKU: 29SRAM-OB Category:

Description

29mm open bore adapter is used to press 29mm x 42mm sealed bearings. The adapter is machined with one step at 29mm OD, which fits in to the center of the sealed bearing. For use with Wheels Mfg Bottom Bracket Press (PRESS-7, PRESS-7-PRO or PRESS-9-PRO)

  • Installs: 29X42 (DUB compatible) bearing
  • Inner Step Outer Diameter: 41.8mm
  • Outer Diameter: 28.9mm
  • Thru Hole Diameter: 12.8mm (1/2″)
  • Thickness: 7mm
  • Compatible with PRESS-7, PRESS-7-PRO or PRESS-9-PRO handles/rod.
  • Machined, red anodized aluminum
  • Sold individually

Additional information

Weight .15 oz
Tool Type

Bottom Bracket Tools

  • Installs: 29X42 (DUB compatible) bearing
  • Inner Step Outer Diameter: 41.8mm
  • Outer Diameter: 28.9mm
  • Thru Hole Diameter: 12.8mm (1/2")
  • Thickness: 7mm
  • Compatible with PRESS-7, PRESS-7-PRO or PRESS-9-PRO handles/rod.
  • Machined, red anodized aluminum
  • Sold individually

29SRAM-OB is designed specifically to press in 6806/29 sealed bearings and will also press in Wheels Mfg SRAM DUB compatible bottom brackets. May not be suitable for pressing in other brand's DUB compatible bottom brackets. If used with other brand BBs, make sure the adapter is pushing on either the bearing outer race, or the BB cup itself. Do not push on the bearing seal.

29SRAM-OB adapter will work with the follow press handles with 1/2" threaded rods:

  • Press 7
  • Press 7 PRO
  • Press 9 PRO



Will fit on PRESS-1 or PRESS-4 handles/rod, but not advised due to the different thru hole sizes.
