BB86/92 30MM Flanged Dual Row Kit

$87.50$170.00

Expand your choice of cranks for use in BB86/BB92/BB91/BB71-41/BB107 frames. Replace your bottom bracket with these dual-row flanged bearings and run 30mm spindle cranks (FSA BB386EVO, Rotor 3d+, RaceFace Next SL, e.thirteen) cranks in your frame. These bearings fit directly in frames with 41mm ID smooth bore bottom bracket shells. You must use 30mm spindle cranksets with spindle lengths longer than 104mm.

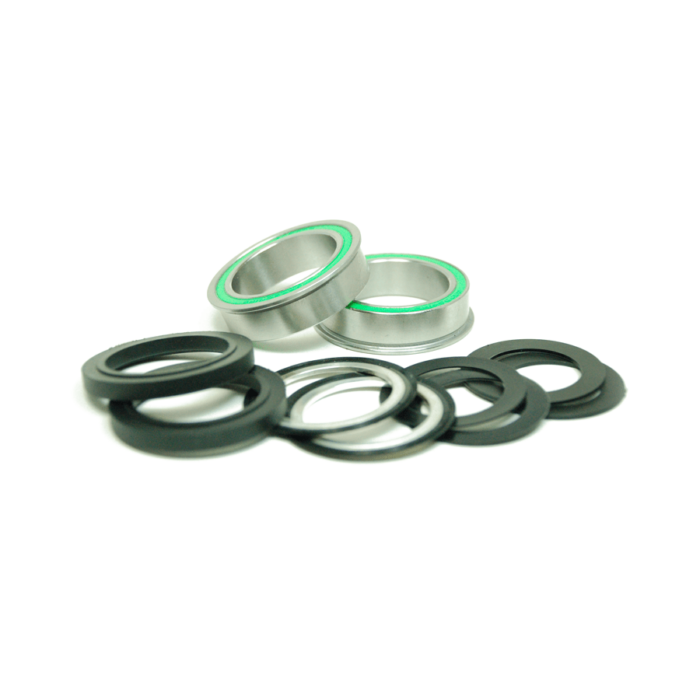

Includes:

  • (2) – Enduro BB86 to 30MM Dual-Row Bearing
  • (2) – 0.5mm crank spacer
  • (2) – 1.0mm crank spacer
  • (2) – 5.0mm crank spacer
  • (2) – Dust seals
Clear
SKU: BB86/30 Dual Row Flanged Categories: ,

Description

Expand your choice of cranks for use in BB86/BB92/BB91/BB71-41/BB107 frames. Replace your bottom bracket with these dual-row flanged bearings and run 30mm spindle cranks (FSA BB386EVO, Rotor 3d+, RaceFace Next SL, e.thirteen) cranks in your frame. These bearings fit directly in frames with 41mm ID smooth bore bottom bracket shells. You must use 30mm spindle cranksets with spindle lengths longer than 104mm.



Additional information

Weight 1.0 oz
CRANK SPINDLE DIAMETER

BB STANDARD

Select A Bearing Type

Black Oxide, Stainless Steel, Ceramic Hybrid, ABEC-5, ABEC-3

  • ID:   30mm
  • OD:   41mm
  • Flange OD: 42mm
  • Width:   11mm
  • Frame:   BB86, BB92, PF90, BB104/107, PF121, PF132
  • Spindle Fit:   30mm
  • Weight: 90g

Note: Dual Row bearings are 11mm deep while single-row bearings are 7mm.  Check your frame shell to ensure the dual row bearing will fit.

Note: When installing bearing use the 42mm side of the Press 7 drift and not the 41mm. Using the 41mm can sheer off the retaining flange on the bearing.
