T47 Series for 29mm Cranks

$90.00

T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.

Clear
SKU: T47-BB-29MM Category:

Description

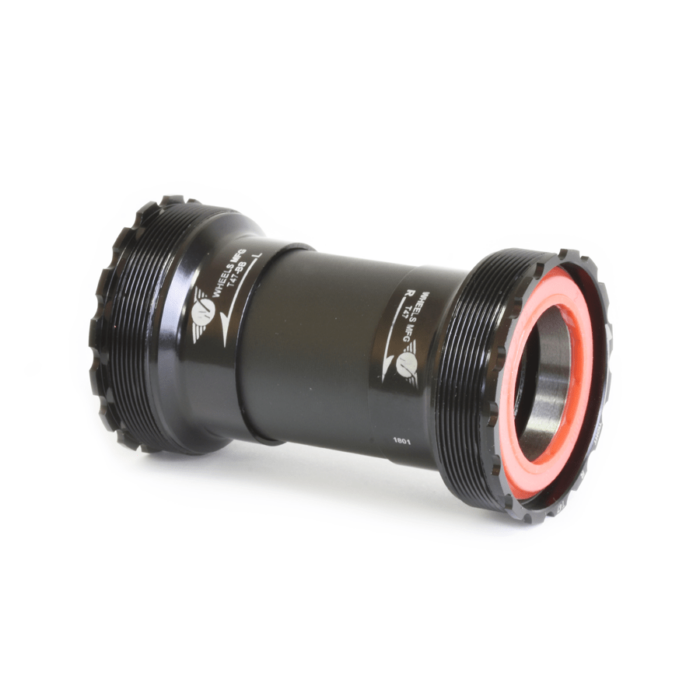

T47 threaded BB cups for T47 frames and 29mm spindle diameter SRAM DUB cranks. Cups have internal bearings, and can be used in BB shells with widths from 68mm to 132mm. Machined aluminum cups thread together directly into a T47 BB shell. Bearings are easily serviced or replaced. Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubbing on the crank spindle.



T47 BB cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread. Use a quality grease when installing in steel or aluminum BB shells, and an anti-seize compound compatible with titanium BB shells.


Additional information

Weight 3.0 oz
BB STANDARD

CRANK SPINDLE DIAMETER

Select A Bearing Type

ABEC-3

  • Color: Black
  • Bottom Bracket/Frame Interface: T47
  • Bottom Bracket Shell Width (mm): 86mm - 121mm
  • Bottom Bracket Shell I.D.: 47x1.0mm Threaded
  • Crank Spindle Diameter: 29mm
  • Over Bearing Width: 86.5mm in 86.5mm wide shell*
  • Tool Pattern: 48.5mm x 16-notch
  • Weight: 97g

Compatible with the following Bottom Bracket Standards (47x1.0mm Threaded BB shell):

  • T47

Compatible with 29mm spindle diameter SRAM DUB compatible cranksets.


Download: T47 Installation / ServiceDownload PDF File
