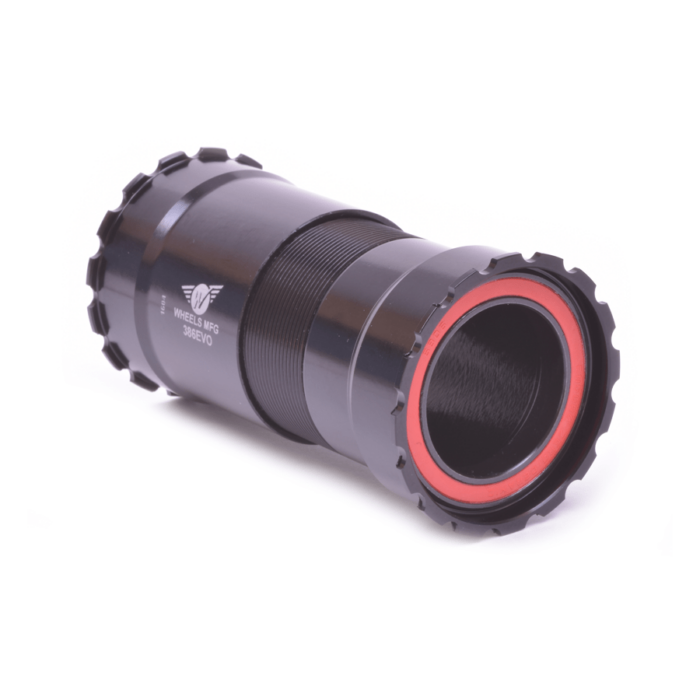

386EVO Series For 30mm Cranks

$95.00$278.00

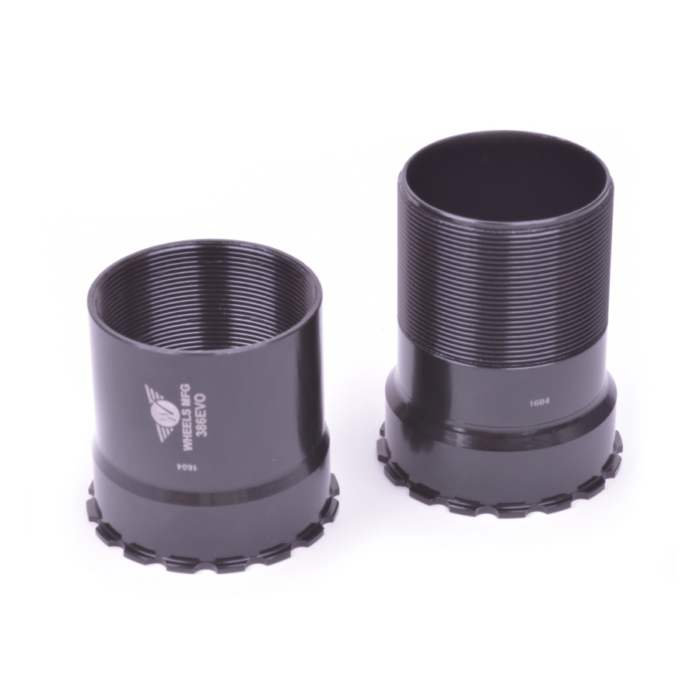

Thread together BB for 386EVO frames and 30mm diameter spindle cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.



Clear
SKU: 386EVO-30 Category:

Description


Thread together BB for 386EVO frames and 30mm diameter spindle cranks. Machined aluminum cups thread together for stability, increased bearing life, and simple installation and maintenance.

No more creaking. Smooth operation. Fast bearing replacement.



Additional information

Weight 1.0 oz
BB STANDARD

CRANK SPINDLE DIAMETER

Select A Bearing Type

XD-15, Zero Ceramic, Ceramic Hybrid, Angular Contact, ABEC-5, ABEC-3

  • Color: Black
  • Bottom Bracket/Frame Interface: BB386EVO, BB392EVO
  • Bottom Bracket Shell Width (mm): 86mm - 92mm
  • Bottom Bracket Shell I.D.: 46mm
  • Crank Spindle Diameter: 30mm
  • Over Bearing Width: 91.5mm in 86.5mm wide shell
  • Weight: 133g

- Over Bearing Width Dimensions include supplied silicone dust shields.


Compatible with the following Bottom Bracket Standards (46mm BB shell ID, 86mm - 92mm wide BB shell) and 30.00mm diameter spindle cranks*:

  • BB386EVO
  • BB392EVO

Note:

If used with FSA 24mm cranks, please see our Compatibility Issues page for known issues.


Download: 386EVO Thread Together Installation / ServiceDownload PDF File
